Mid-Progress Report (11/16/2025)

The ultimate goal of this project is to write a script that will take any image and create a single-stroke rendering of it. This process occurs through two main (algorithmic) steps: (1) the image is converted to a series of stippled points, with a higher density of points in darker areas of the image; and then (2) the points are joined using a TSP traversal. The outputted image can then be etched via laser-cutting onto a laser-safe surface.

Current functionality (11/16/2025)

Steps (1) and (2) are currently demo-ready, though both still have to be refined for additional flexibility and ease from an end-user perspective.

Step 1

The conversion from an image to point form is done in Python in a class called image_processing.py, which contains the following functions:

1. process(imagepath,new_width) - Takes an image as a filepath, converts to grayscale, and then downsizes. The downsizing is important in order for the point and path generation to take a reasonable amount of time; initial tests have been done by downsizing an image to 200 pixels in width. process returns a PIL image object, and the new image is saved to the project directory.
2. macqueen(image,k,iters=5000) - Takes a processed image (i.e., one that has already been converted to grayscale), and then creates a probability distribution based on the inverted RGB values of the greyscale image. Then, the point generation proceeds in two main steps: (a) $k$ points (as a pixel location) are generated according to the probability distribution and initialized with a “resistance” counter set to 0; and then, for 5000 iterations, (b) a new “tractor beam” point is generated from the same distribution, and the point from the set of $k$ points that is closest in Euclidean distance to the “tractor beam” point has its resistance counter incremented by 1, and its location adjusted to a weighted average of the tractor beam’s location and its original location. macqueen() returns the modified points as a numpy array.
3. tsp_path(points) takes in an array of locations and then returns a locally optimal TSP traversal through the points as an array of indices indicating the order of visitation through points.

In the generation script, the end user calls these functions in order, passing in an image of their choice. The end user then saves the array of point coordinates and the order of visitation as csv files, which are then imported into Processing for the image generation.

Step 2

In Processing, the user imports csvs holding the point coordinates and the order of visitation. After reading in the lines of the point coordinates file, the coordinates are joined by lines according to the order of visitation.

Images

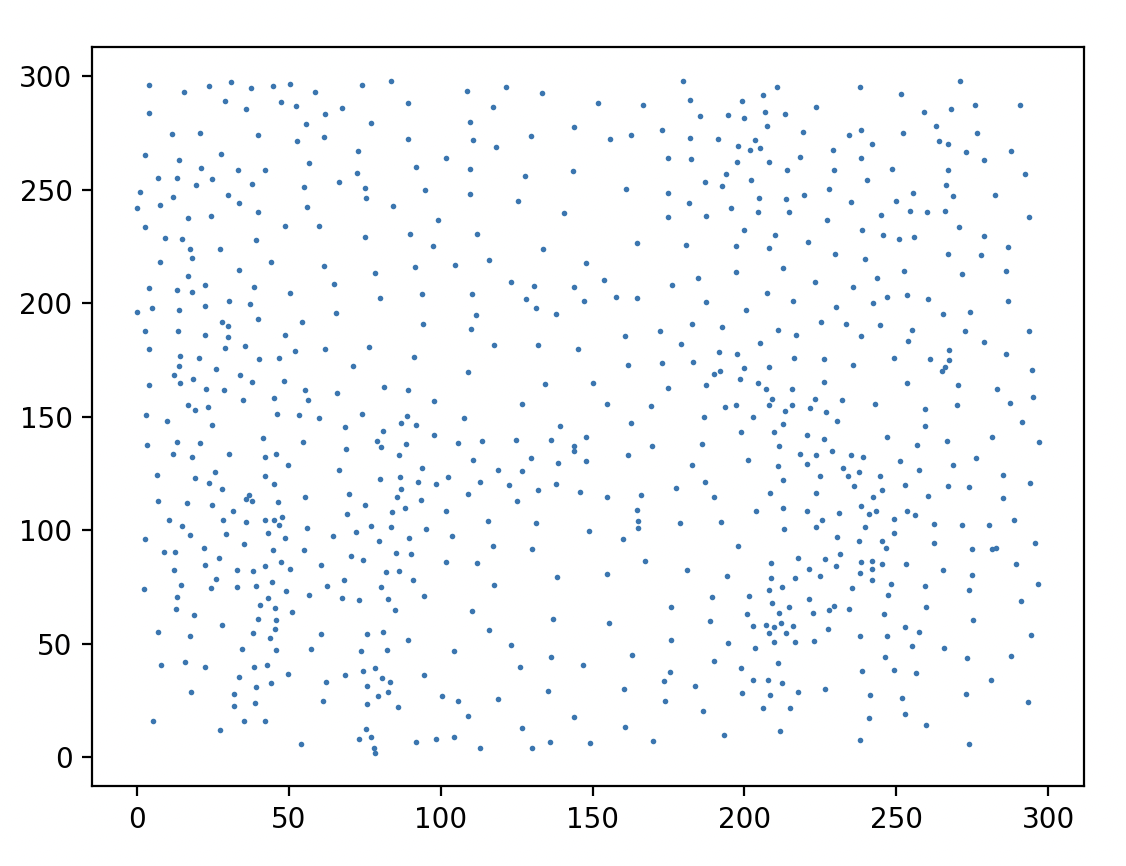

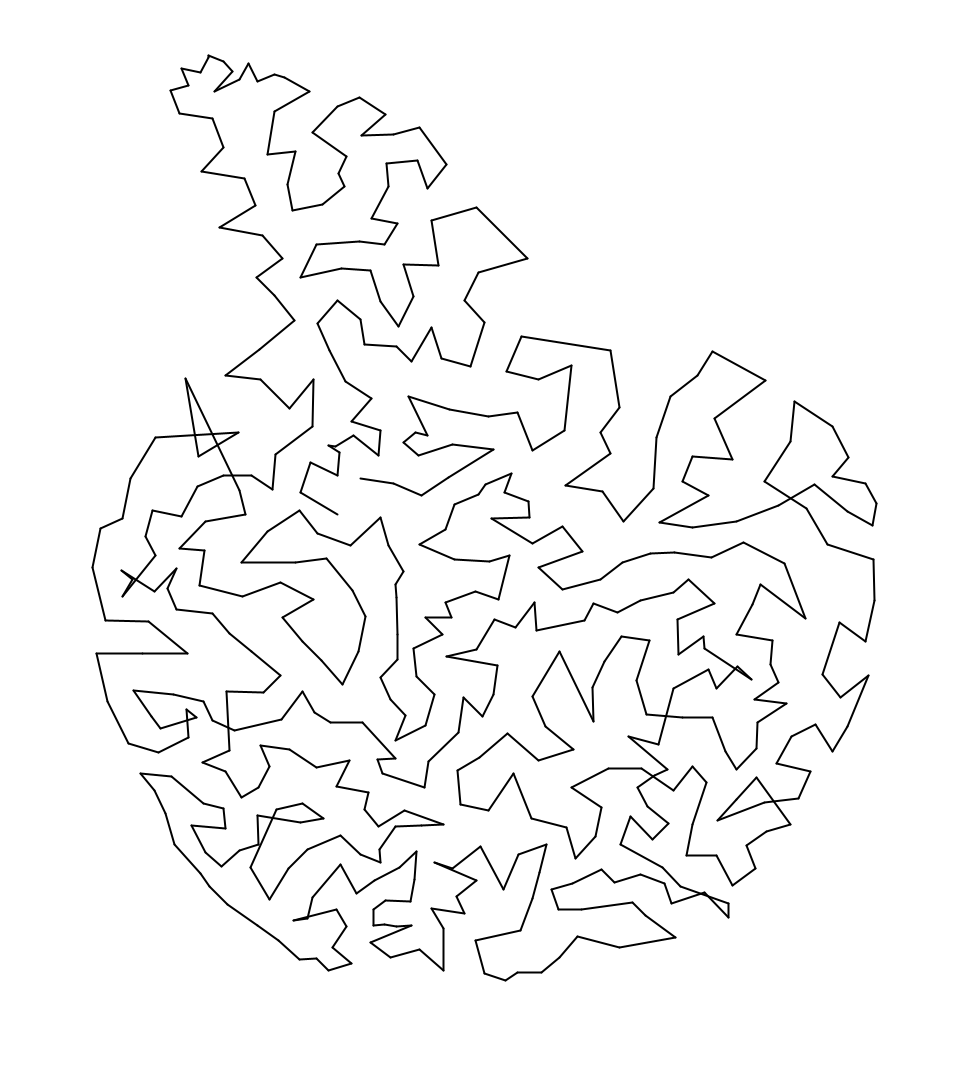

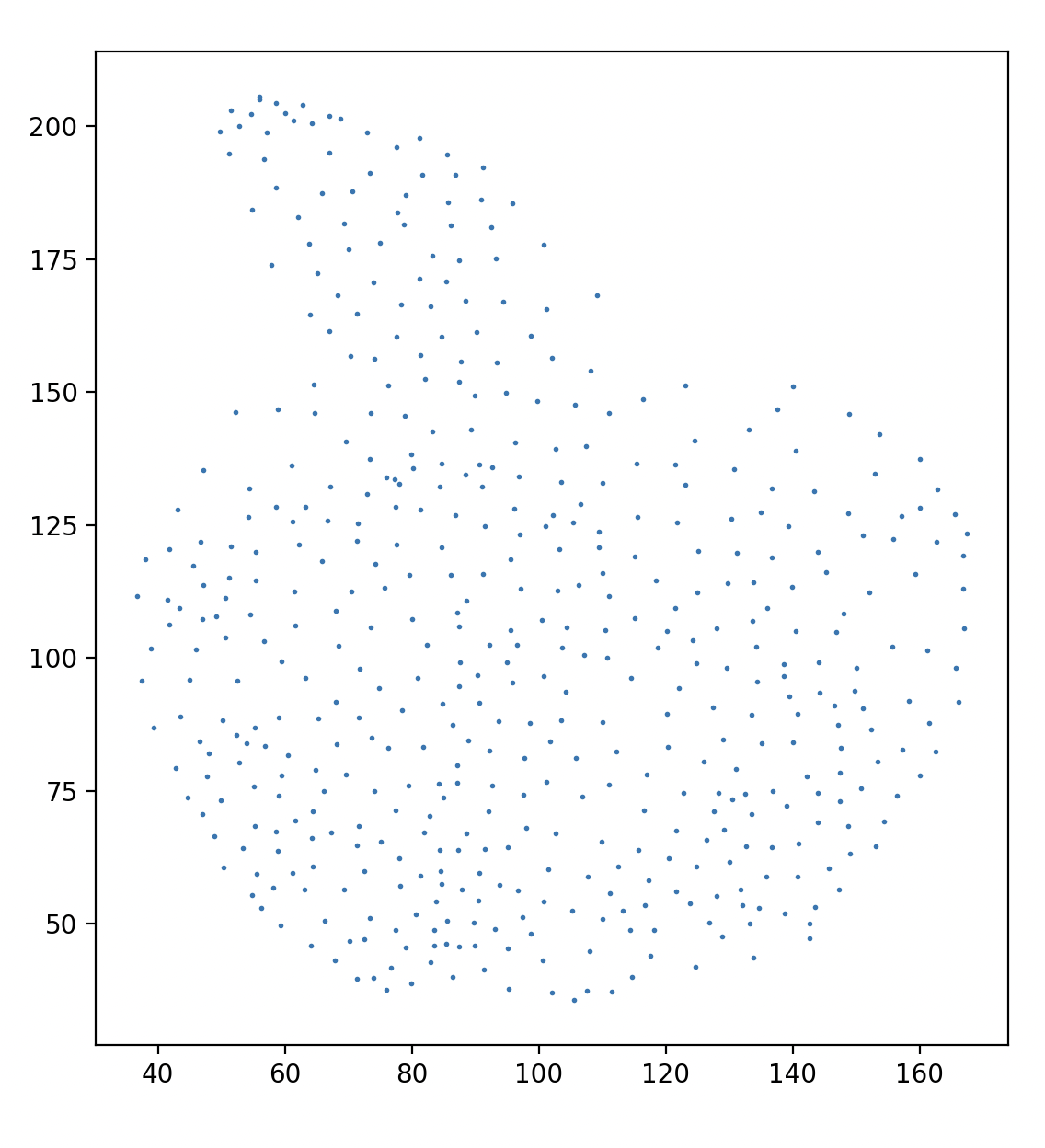

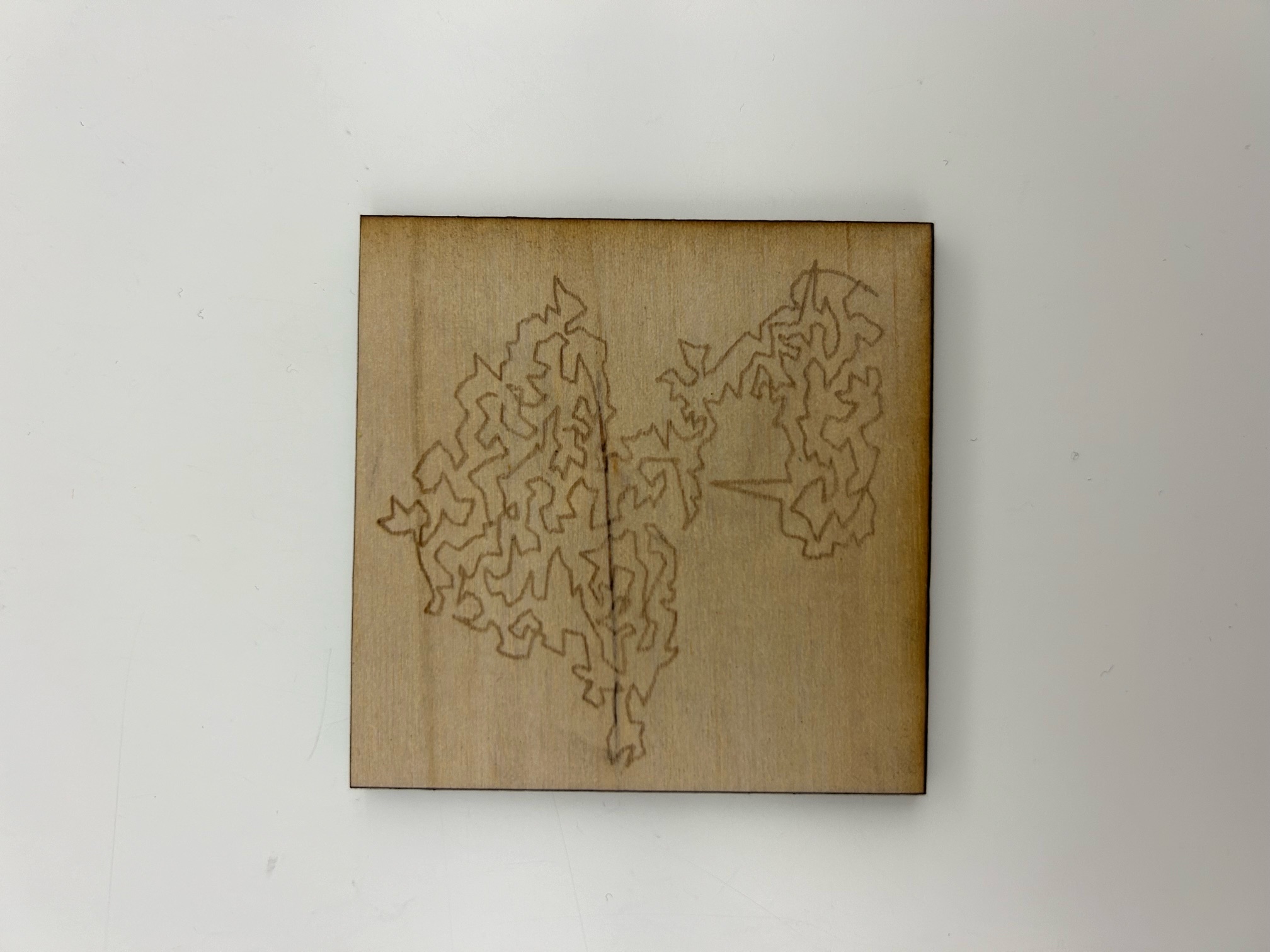

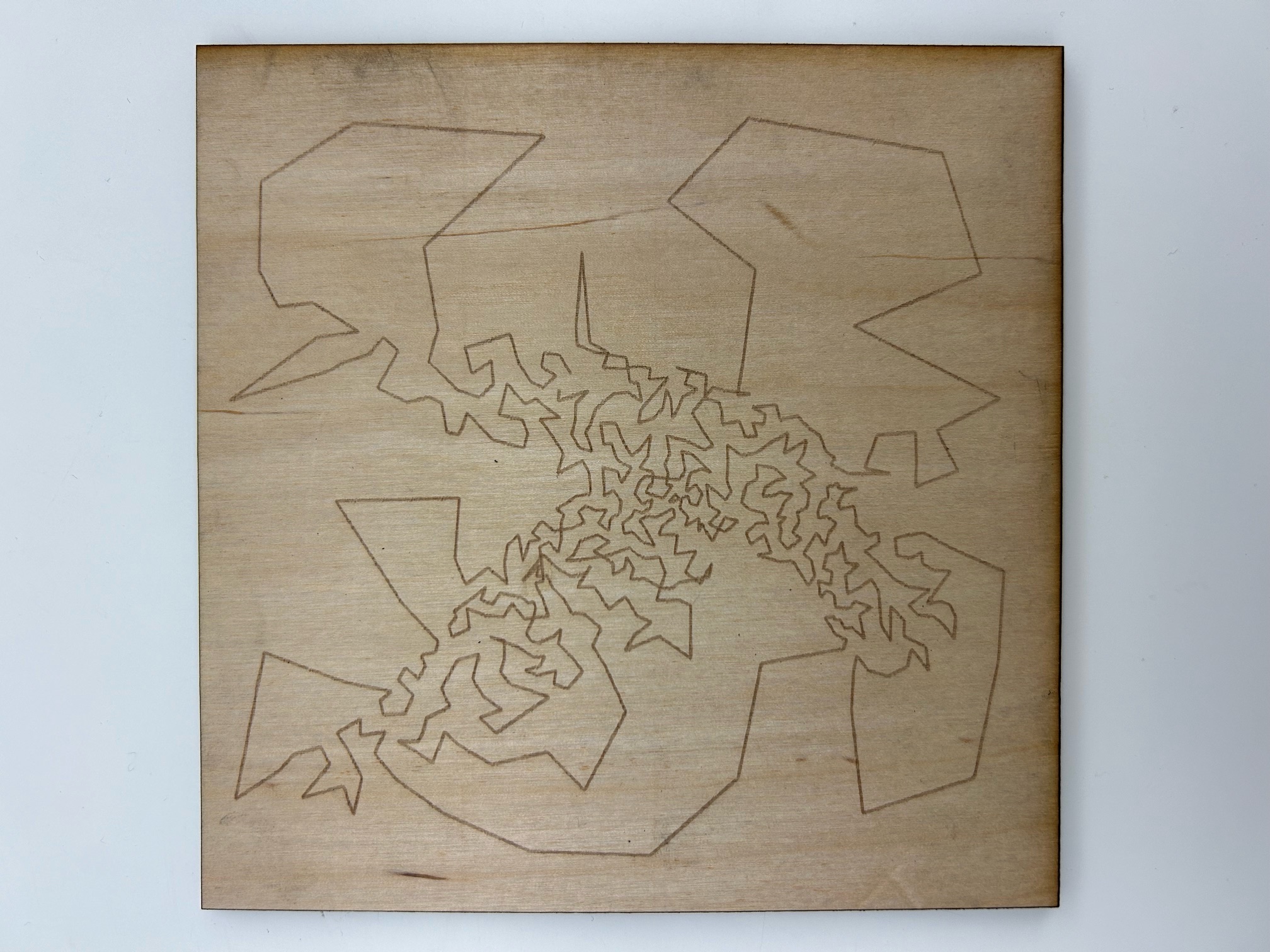

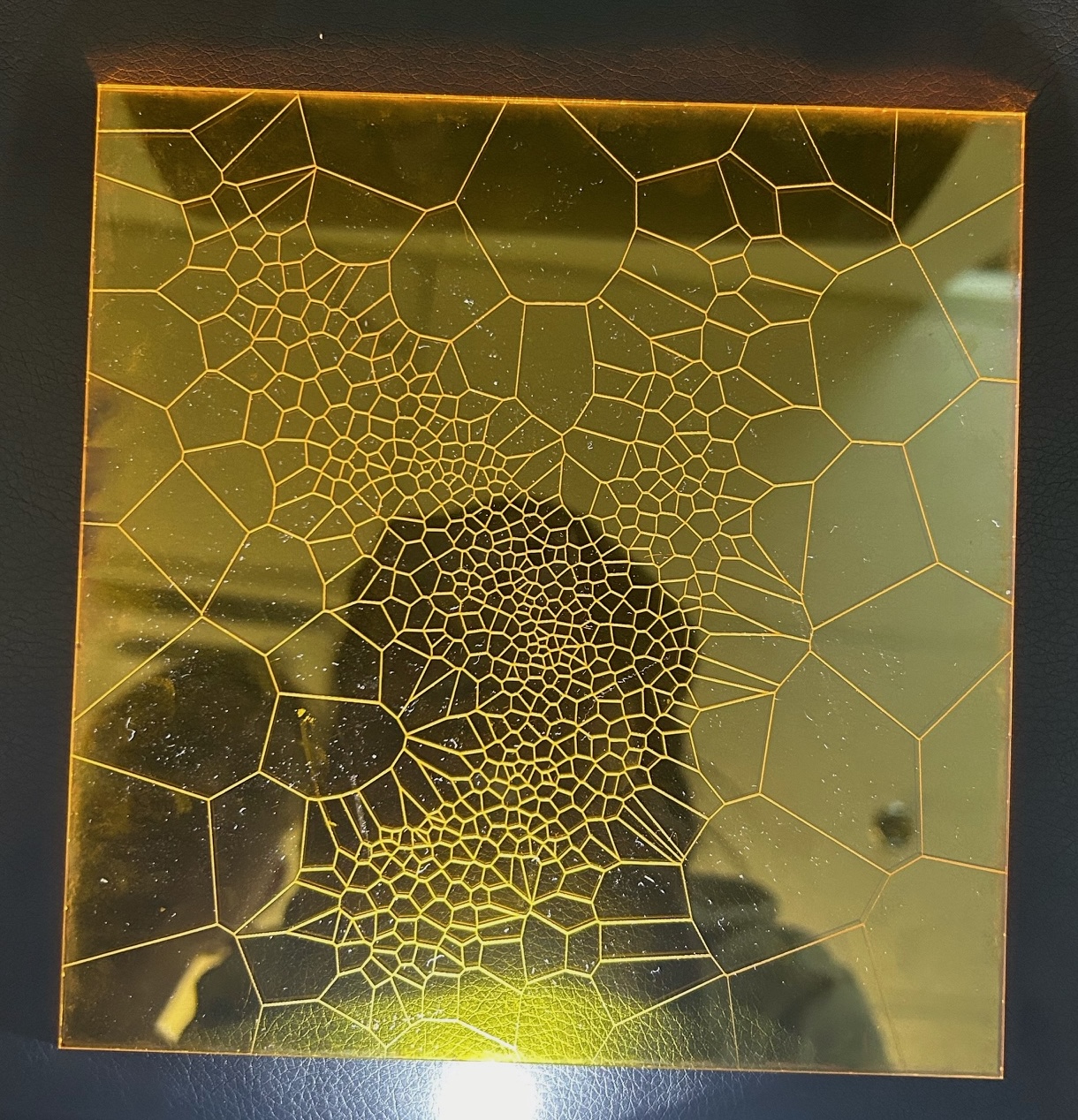

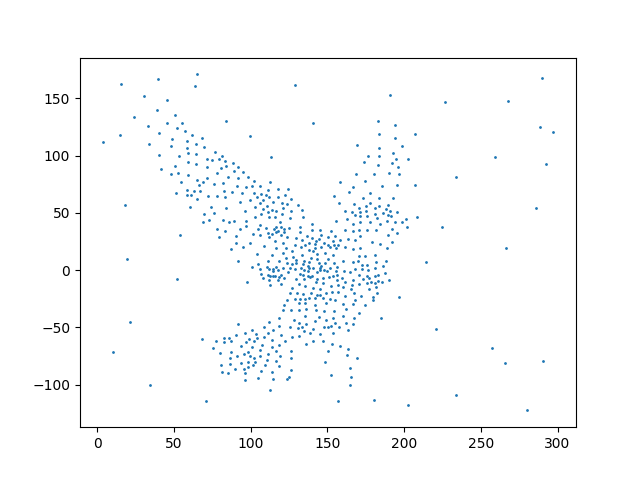

Below is the demo image, the (optional) output from step 1, and then the final output from step 2.

Runtime: Initial tests have been done with a resized image of 200 x 220 pixels, with 500 points and 5000 iterations of Macqueen’s algorithm. The whole process terminates in around 2-4 minutes from start to finish, with the vast majority of the time spent on step 1. It is unlikely that step 1’s runtime can be optimized much further, as even heuristic TSP computations are expensive.

Performance: One obvious flaw with the output is that there is a small number of crossings in the path. This is likely because the TSP algorithm that I use is heuristic, so it doesn’t achieve the true optimal distance. It would likely take much, much longer to generate a truly optimal visitation order, though definitely possible (and probably will be done for the final fabrication step to achieve a more aesthetically pleasing outcome).
